• Device / Detector wise configuration facility.
  • 2000 Event Storage with Real Time Clock.
  • Upto 192 grouping facility.
  • Pre Alarm Action.
  • All field wiring are power limited and supervised.
  • Programmable detector sensitivity.
  • Device type verification.
  • Earth fault annunciation facility at 0 ohms.
  • Double Address Sensing.
  • Loop wise remote device test.
  • 40 X 4 Characters LCD display.
  • 5 IDC Loops (4 Addressable and 1 Conventional loop).

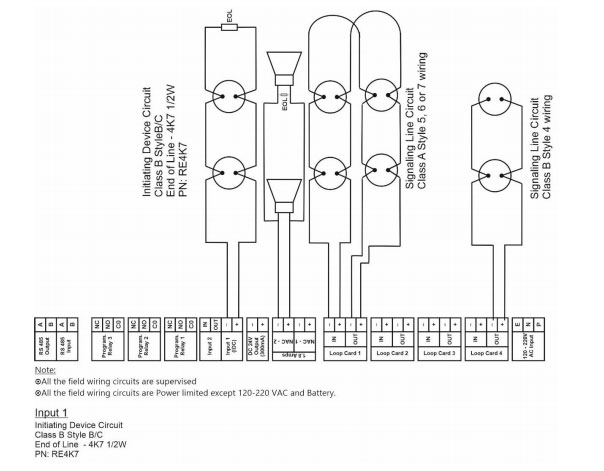

  • Maximum 4 numbers of loop card with Class A, Style 5,6 or 7 and Class B Style 4 wiring.
  • Maximum 254 devices (any combination) per loop.
  • Day / Night Mode facility.
  • USB 2.0 Interface for PC connectivity (field Programmable).
  • RS 485 Communication facility for Network / Repeater
  • RS232 Communication facility for thermal printers (optional)
  • Programmable Auto Silence Facility.
  • Programmable AC Loss Delay.
  • Programmable Silence Inhibit.
  • Battery low audio, visual warning.
  • Two programmable Inputs for Evacuate, Remote
  • Silence & Conventional Zone.
  • Three programmable Form C relay for Fire, Fault and Supervisory.
  • Two no’s of Supervise Notification Appliance Circuits.

Special Features
  • UL Listed (9th Edition).
  • Switched Mode Power Supply.
  • Modular Construction, Serviceability.
  • Networkable.
  • Auto Re-settable Fuse.
  • Surge Protection.
  • Battery polarity protection.
  • 32 bit processor.
  • Unique protocol feature for fast alarm response.
  • Inbuilt conventional circuit.
  • Alphanumeric Touch Keypad for user friendly operation.
  • Auto learning facility.
  • Multi protocol.

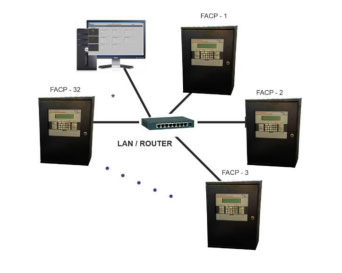

  • Peer to Peer Networking.
  • Redundancy : If the main CPU fails, it will raise an alarm like conventional panel.
