External Power Supply
Overview
RE – 2 Ampere
Overview

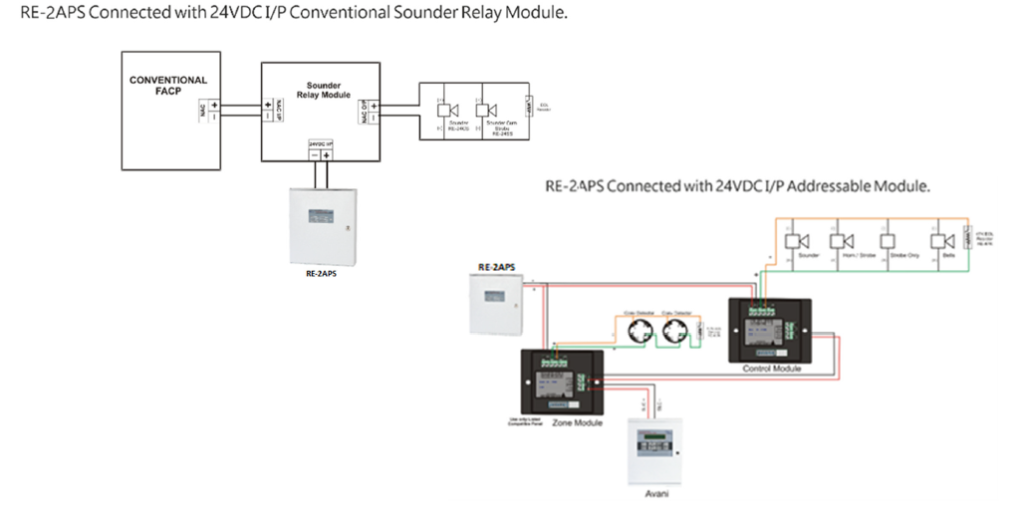

The 2 Ampere external power supply is compact with built-in charger. It may be connect to any 24 Volt Fire alarm control panel or may be stand- alone for the primary applications like Notification Appliance Circuit expansion or auxiliary power to support 24 Volt system accessories. It provides regulated and filtered 24 VDC power to NAC’s and it also contains a battery charger capable of charging up to 14 Ah batteries.
Share This :
- Operates on 120 - 220 VAC, 60 / 50 Hz +10%, -15% .
- Battery backup with built in charging.
- Low battery visual warning with audible tone.
- DC Output indication.
- Lock and key for authorized access.
- Replaceable Fuse for DC output.
- Auto resettable fuses are provided for AC and battery.
