External Power Supply

RE-5 Ampere

Overview

The 5 Ampere external power supply panel is compact and cost effective with built-in charger. It may be connect to any 24 Volt fire alarm control panel or may be stand- alone for the primary applications like Notification Appliance Circuit expansion or auxiliary power to support 24 Volt system accessories. It provides regulated and filtered 24 VDC power to NAC’s and it also contains a battery charger capable of charging up to 14 Ah batteries.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Ordering Information

Operating on 120 - 220 VAC, 60 / 50 Hz +10%, -15% .
Battery backup with built in charging.
Low battery visual warning with audible tone.
DC Output indication.
Lock And key for authorized access.
Replaceable Fuse for DC output.
Auto resettable fuses are provided for AC and battery.

Electrical Specification
Mains	120-220 VAC, 50 Hz +10%, -15% 150W. Wire size: 1.5 Sq. mm with 600V insulation
Battery (Lead Acid only)	Charging Voltage: 28 VDC +/- 2%. Charging Current: 500mA Max System Quiescent Current: 35mA charger on indication
Output Voltage	30VDC @ 5A Max. Operating Temperature: 0^oC to 49^oC / 32^o- 120^oF. Storage Temperature: 0^oC to 60^oC.

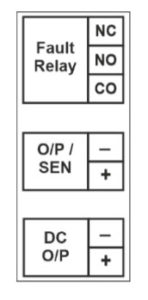

Common Fault Relay Output	Type form: C No of relay: 1 Relay conduct rating: 2A @ 30 VDC .0.5A @ 125VAC.

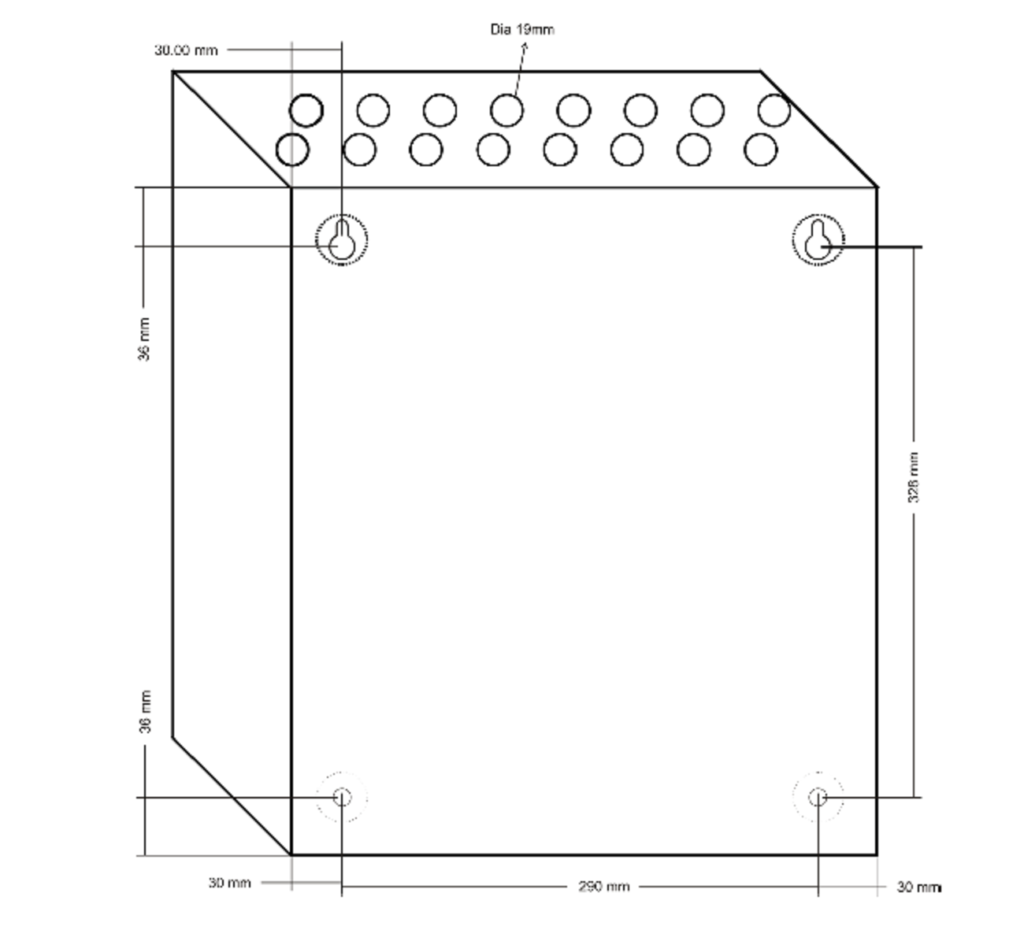

Mechanical Specification
Dimension	350 W x 400 H x 100 D ( mm)
Weight	7 Kg Max
IP Rating	IP50
