Conventional Smoke Detector

RE-316 S2L

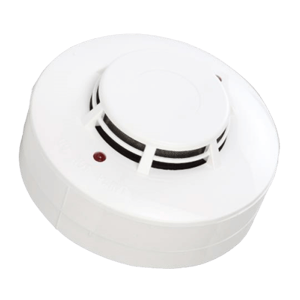

The conventional smoke detectors are designed to work with all conventional Panels. These detectors are low profile and have dual LED’s for 360° visual indication. The blinking LED’s indicate normal operating conditions whereas the steady state to indicate fire status. It has an unique protocol chamber designed to sense smoke produced by wide range of sources of combustion. It has a unique drift compensation feature wherein the detector adjusts its normal reference based on environment conditions.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

UL listed.
Dual LED’s for 360° visibility.
Advanced detection technique.
Polarity free wiring
Easy to install.
Sleek low-profile housing design.
Regular 100mm base.

Electrical Specification
Operating Voltage	9 ~ 33V DC.
Reset Voltage	Less than 1V.
Standby Current	50 μA.
Start up Time	60 Sec.
Start up Current	170 μA.
Alarm Current	90 mA (max).
Remote Output	15mA maximum open collector.
Smoke Sensitivity	(1.96 ± 0.76) % / ft obscuration
Air Velocity	0 ‐ 4000 fpm
Operating Temperature	-10° C to 37.8° C
Storage Temperature	-10° C to 60° C
Humidity	0 - 95% RH, non-condensing
Cycle time	5 Sec
Installation Space	5 meters
Mechanical Specification
Dimension	46 H x 100 D ( mm)
Weight	130 g with base
IP Rating	IP42

Wiring Diagram

Compatibility Device

Model	Description
RE-314B	Normal Base
RE-364BS	Conventional Sounder Base
RE-717MZ	Addressable Zone Interface Module

Compatibility Panel

Model	Description
RE‐102	Conventional 2 IDC Fire Alarm Control Panel
RE‐104	Conventional 4 IDC Fire Alarm Control Panel
RE‐2554	Conventional 4 IDC Fire Alarm Control Panel
RE‐2558	Conventional 8 IDC Fire Alarm Control Panel
RE‐900 Series	Conventional Fire Alarm Control Panel
RE‐25AR	Conventional Agent Release Control Panel
RE‐120GR	Conventional Gas Release Control Panel
