Conventional Multi Sensor Detector

RE-316SH-2L

Overview

The conventional Multisensor detectors are designed to work with all conventional panels. These detectors are low profile, dual LED’s, polarity free and 360° visual indication. The blinking LED’s indicate normal operating conditions whereas the LED’s in steady state to indicate fire status. RE-316SH-2L is a fixed cum Rate Of Rise heat detector works using a thermistor. These detectors will raise an alarm when the detector reaches 59°C(Fixed) or when the change in temperature exceeds the rate of rise by 11°C / min. It has an unique chamber designed to sense smoke produced by wide range of sources of combustion with insect free.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

UL Approved.
Dual LED’s for 360° visibility.
Advanced detection technique.
Easy to install.
Polarity free wiring.
Sleek low‐profile housing design.
Regular 100mm base.

Electrical Specification
Operating Voltage	9 ~ 33V DC
Reset Voltage	Less than 1V
Standby Current	50 μA
Start up Time	60 Sec
Start up Current	170 μA
Alarm Current	90 mA (max)
Remote Output	15mA maximum open collector
Thermal Rating	59° C (138° F)
Rate of Raise of Temperature	11.1° C / min (20° F/min)
Smoke Sensitivity	(1.9 ± 0.76) % / ft obscuration
Air Velocity	0 - 4000 fpm
Operating Temperature	-10° C to 37.8° C
Storage Temperature	-10°C to 60°C
Humidity	0 - 95% RH, non-condensing
Cycle Time	5 Sec
Installation Space	5 meters
Mechanical Specification
Dimension	46 H x 100 D ( mm)
Weight	130 g with base
IP Rating	IP42

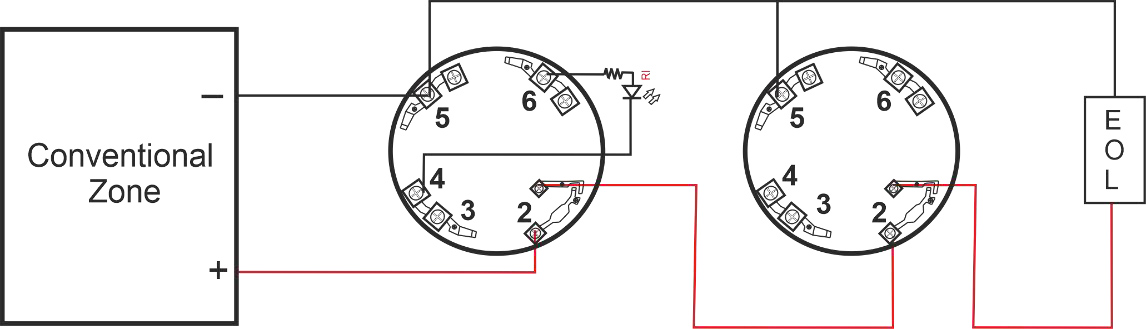

Wiring Diagram

Note: RI- Response Indicator

Compatibility Device

Model	Description
RE-314B	Normal Base
RE-364BS	Conventional Sounder Base
RE-717MZ	Addressable Zone Interface Module

Compatibility Panel

Model	Description
RE‐102	Conventional 2 IDC Fire Alarm Control Panel
RE‐104	Conventional 4 IDC Fire Alarm Control Panel
RE‐2554	Conventional 4 IDC Fire Alarm Control Panel
RE‐2558	Conventional 8 IDC Fire Alarm Control Panel
RE‐900 Series	Conventional Fire Alarm Control Panel
RE‐25AR	Conventional Agent Release Control Panel
RE‐120GR	Conventional Gas Release Control Panel
