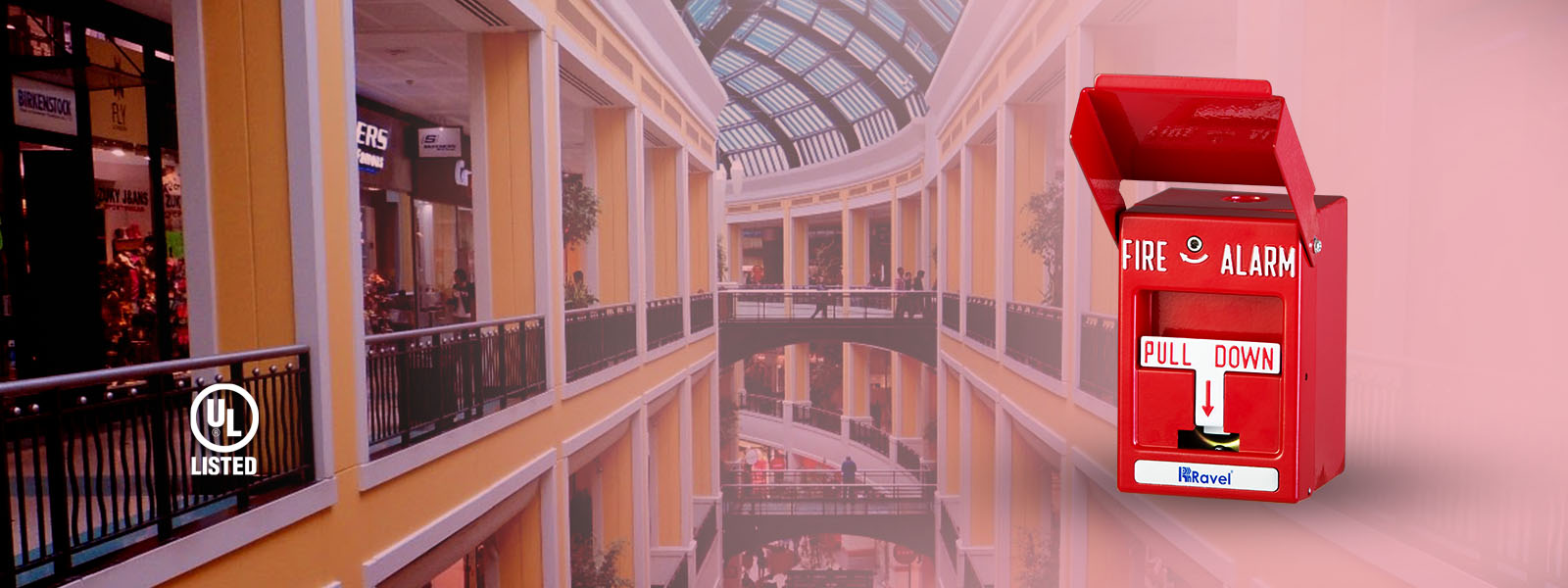

Manual Pull Station Dual Action

RE-716P1TLP

Overview

Manual Pull Station is made up of a high quality non-toxic die-cast material. Low profile design and smooth edges offer an attractive yet functional design. All components are pre-painted or have plated surfaces to inhibit corrosion. Electrically the manual pull station is unbeatable with 10 Amp snap action switch offered in all possible contact arrangements (including gold contacts). The manual pull station can be used with or without a break glass rod, with replacement requiring no special tools.

Construction Material

Painted Die Cast Housing.
14 Ga plated steel black plate.
Corrosion inhibited surfaces.
Terminal block (2 Position).
Single Gang Mounting
10 A, 120VAC snap action switch (S.P.S.T.)
Enclosure Complies IP 40 as per IEC standard 60529

Electrical Specification
Switch	SPST 10A@120VAC
Mechanical Specification
Dimensions	(3.200W x 4.750L x 0.875 D) inches
Weight	15.5 oz / 420 grams
Mount	Single gang

Compatible Panels

Model	Description
RE‐102	Conventional 2 IDC Fire Alarm Control panel
RE‐104	Conventional 4 IDC Fire Alarm Control panel
RE‐2554	Conventional 4 IDC Fire Alarm Control panel
RE‐2558	Conventional 8 IDC Fire Alarm Control panel
RE‐120GR	Conventional Gas Release control Panel
RE‐25AR	Conventional Agent Release control Panel
RE-900 series	Conventional Fire Alarm Control Panel
