Conventional Sounder

RE-716SO

Overview

The sounder is designed to reliable safety solution with UL certification and dual tone auditable settings. For Continuous and temporal 3tones available .It can delivers the sounder output range between 75db to 85db.

Share This :

Facebook Twitter LinkedIn

Features

Specification

Downloads

Compatibility

Ordering Information

UL 464,UL - S525.
2 Audible Tones Settings : Continuous and Temporal 3.
Low current consumption device.
FIRE label visibility from all direction.
24VDC Operation.
Used in Fire, Burglar & Emergency Alarm System.

Electrical Specification
Max. Current Draw	25mA
Operating Voltage	24V DC(16-33 VDC)/FWR
Mounting Options	Standard 4” *4” Back box
Sounder Output	75dB to 85dB
Compliance	UL 464,UL-S525
Operating Temperature	0 ‐ 49° C / 32‐120° F
Storage Temperature	0°C to 60°C
Ip Raing	IP 40
Wiring Type	2
Screw Terminals	#12 to #18 AWG Wires
Mechanical Specification
Dimension	(140 L x 120 W x 51 D) mm

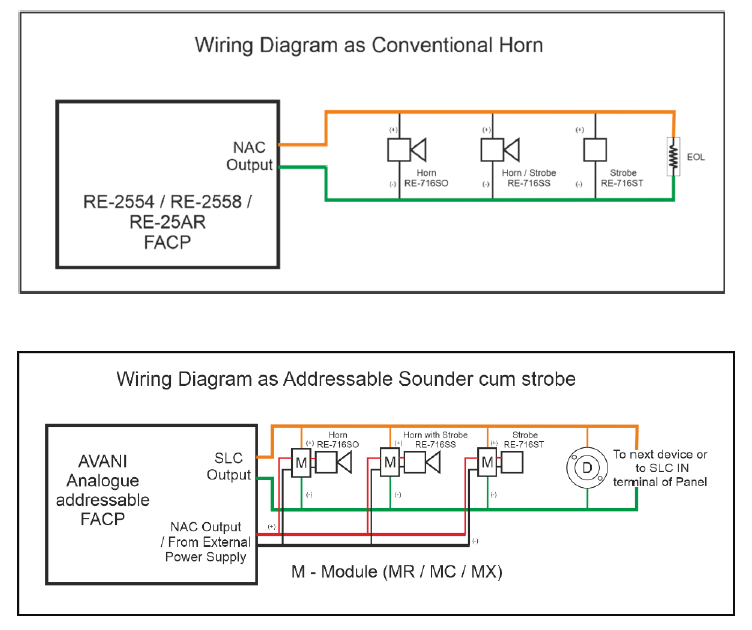

Wiring Diagram

Compatible Panels

Model	Description
AVANI	Analogue Addressable Fire Alarm Control panel expandable upto 4 loop
AVANI db	Analogue Addressable Fire Alarm Control panel expandable upto 2 loop
AVANI XL	Analogue Addressable Fire Alarm Control Panel expandable upto 8 Loop
RE-25AR	Conventional Agent Release Control Panel
RE-2558/2554	Conventional 8 IDC / 4 IDC Fire Alarm Control Panel

Compatible Devices

Model	Description
RE-717MC	Addressable Control Module
RE-717MR	Addressable Relay Module
RE-717MX	Addressable Input / Output module
